Refrigerated vs. Desiccant Air Dryers: How to Choose
The choice between a refrigerated and a desiccant air dryer comes down to one number: the dew point your operation needs. A refrigerated dryer dries compressed air to a dew point of about 35 to 40°F, which is dry enough for most indoor plant air. A desiccant dryer dries air to -40°F or lower, which matters when your air lines meet freezing temperatures or your process cannot tolerate any moisture. Figure out the dew point you actually need, and the right dryer type follows from it.
At Detroit Compressor, we have sold, installed, and serviced both types of compressed air dryers across metro Detroit since 2019, and we ask about dew point before we quote anything. Most plants need less dryness than they think. A desiccant dryer costs more to buy and much more to run, so buying more dryness than your operation needs means paying every month for air quality you will never use.

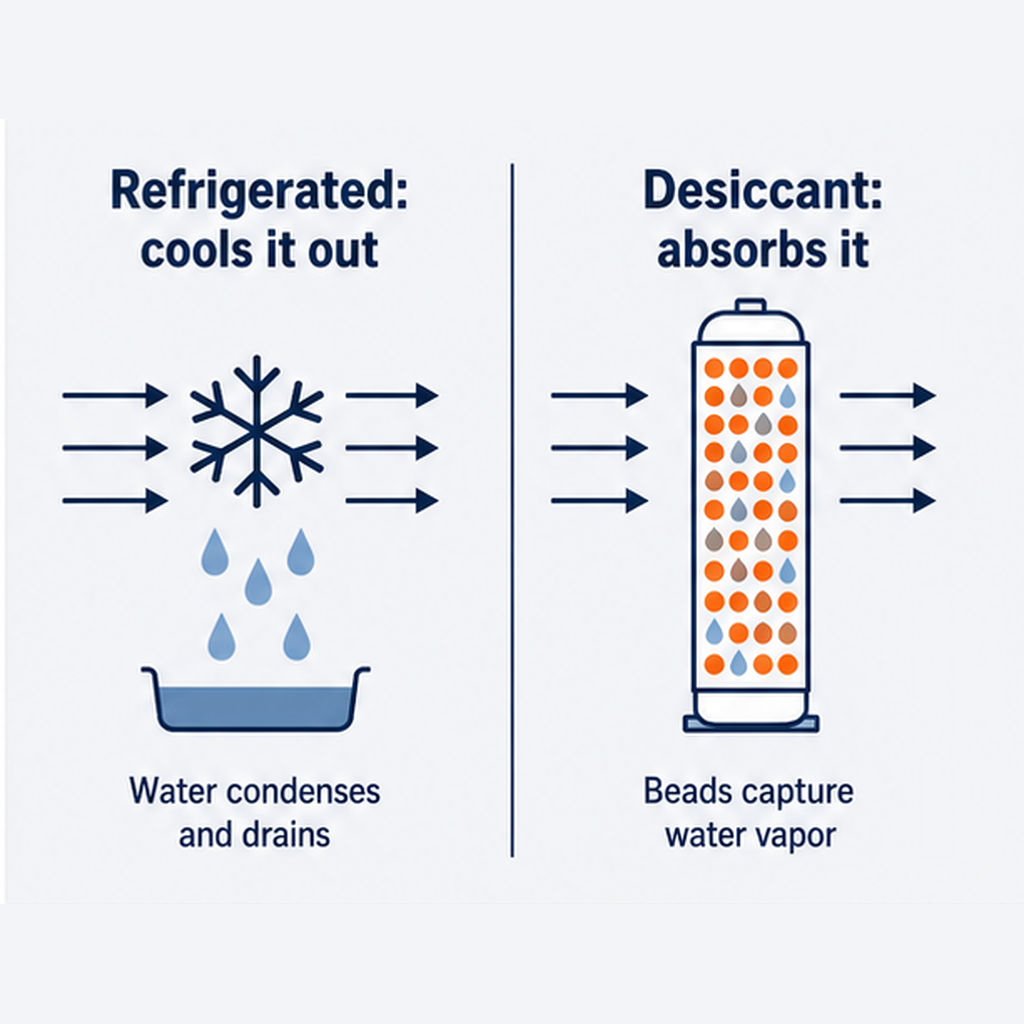

How a Refrigerated Air Dryer Works
A refrigerated dryer cools compressed air to around 35 to 40°F. When air gets that cold, the water vapor in it condenses into liquid droplets, the same way a cold can of pop sweats on a humid day. A separator collects the water, and an automatic drain sends it out of the system. The air warms back up on its way to your plant, but the moisture is already gone, so the air leaves with a pressure dew point of roughly 35 to 40°F. Refrigerated dryers are the most common type in industrial plants because they handle general plant air well with a steady, modest electrical draw.
How a Desiccant Air Dryer Works
A desiccant dryer removes water with adsorbent beads instead of cold. Most industrial units have two towers filled with desiccant. Compressed air flows through one tower, and the beads pull water vapor out of it. While that tower dries your air, the other tower regenerates, meaning the moisture the beads collected gets driven off so the tower is ready for its next turn. This design delivers a -40°F pressure dew point as standard, with versions available down to -100°F.
The most common version, called heatless, regenerates by taking about 15 to 20 percent of the dried compressed air and blowing it through the offline tower. That purge air is air you paid to compress, and it never reaches your tools or your process. Heated and blower-purge versions use electric heaters or a blower instead, which cuts purge to roughly 5 to 10 percent of flow. In exchange, they add heater or blower electricity and more parts to maintain.
Refrigerated and desiccant are the two types nearly every plant chooses between. Other designs exist for special cases, and our FAQ on the different types of compressed air dryers covers them.
Pressure Dew Point: The Number That Makes the Decision
Pressure dew point is the temperature your compressed air can cool to before the water vapor in it starts turning back into liquid. If any spot in your system gets colder than the air’s dew point, liquid water forms at that spot. That could be a pipe run near a dock door, a line between buildings, or a tool at the end of a long outdoor run.
This is why dew point makes the decision for you. Industry guidance is to specify a dew point at least 20°F lower than the coldest temperature your compressed air will ever encounter. Find the coldest spot your air reaches, subtract 20 degrees, and you have the dew point you need.
If that number sits at or above the 35 to 40°F a refrigerated dryer delivers, refrigerated covers you. If it falls below that, or your process itself cannot tolerate moisture, you need desiccant.
Whichever type you choose, the dryer still has to be sized for your flow, pressure, and inlet conditions. Our FAQ on how to size a compressed air dryer explains what goes into that.
Refrigerated vs. Desiccant: Side by Side
Here is how the two types compare on the points that decide the purchase.
| Refrigerated dryer | Desiccant dryer | |
|---|---|---|
| Pressure dew point | About 35 to 40°F | -40°F standard, options to -100°F |
| Upfront cost | Lower | Notably higher |
| Operating cost | Low and steady electrical draw | Several times higher; heatless units purge 15 to 20 percent of rated flow |
| Maintenance | Filter and drain upkeep; sealed refrigeration circuit is mostly hands-off between services | Filters, valves, and desiccant bead replacement roughly every 3 to 5 years |
| Best fit | General plant air, pneumatic tools, indoor manufacturing | Freezing exposure, moisture-critical processes, instrument air |
When a Refrigerated Dryer Is the Right Call
A refrigerated dryer is the right call for most indoor operations. Its 35 to 40°F dew point is dry enough to prevent the damage moisture causes in a typical plant: rust and corrosion inside piping, pneumatic tools wearing out early because water washes away their lubrication, and water ruining paint and finish quality.
Choose refrigerated for:
- General plant air in heated, indoor facilities
- Pneumatic tools and machine air
- Climate-controlled production and assembly work
- Most manufacturing where the air lines never leave the building
When You Need a Desiccant Dryer
You need a desiccant dryer in two situations: when your air will meet freezing temperatures, and when your process cannot tolerate moisture at all.
The freezing case is the one we see most around Detroit. Detroit’s normal daily low stays below freezing from December through March, and January lows average around 19°F.
Any air line that runs between buildings, through unheated storage, or out to a loading dock sits in that cold all winter. The air inside that line left a refrigerated dryer with a dew point of 35 to 40°F, which means it still holds enough moisture to condense if it ever cools below that temperature. In a pipe sitting in 19°F weather, the air cools far below that temperature. The moisture condenses into liquid water, the water freezes, and a frozen air line can stop production just as completely as a failed compressor. We take those service calls every winter.
Desiccant is also the answer for:
- Air lines running outdoors or through unheated space in a freezing climate
- Food, beverage, and pharmaceutical processes, where moisture in product-contact air means contamination
- Paint booths and finishing operations that need very dry air
- Instrument and control air, where moisture clogs and corrodes small passages
- Any spec that calls for a low dew point class under ISO 8573-1
ISO 8573-1 is the international standard that classifies compressed air quality. If your spec sheet names a humidity class, Class 4 is about +37°F, roughly what a refrigerated dryer delivers, and Class 2 is -40°F, which requires desiccant.

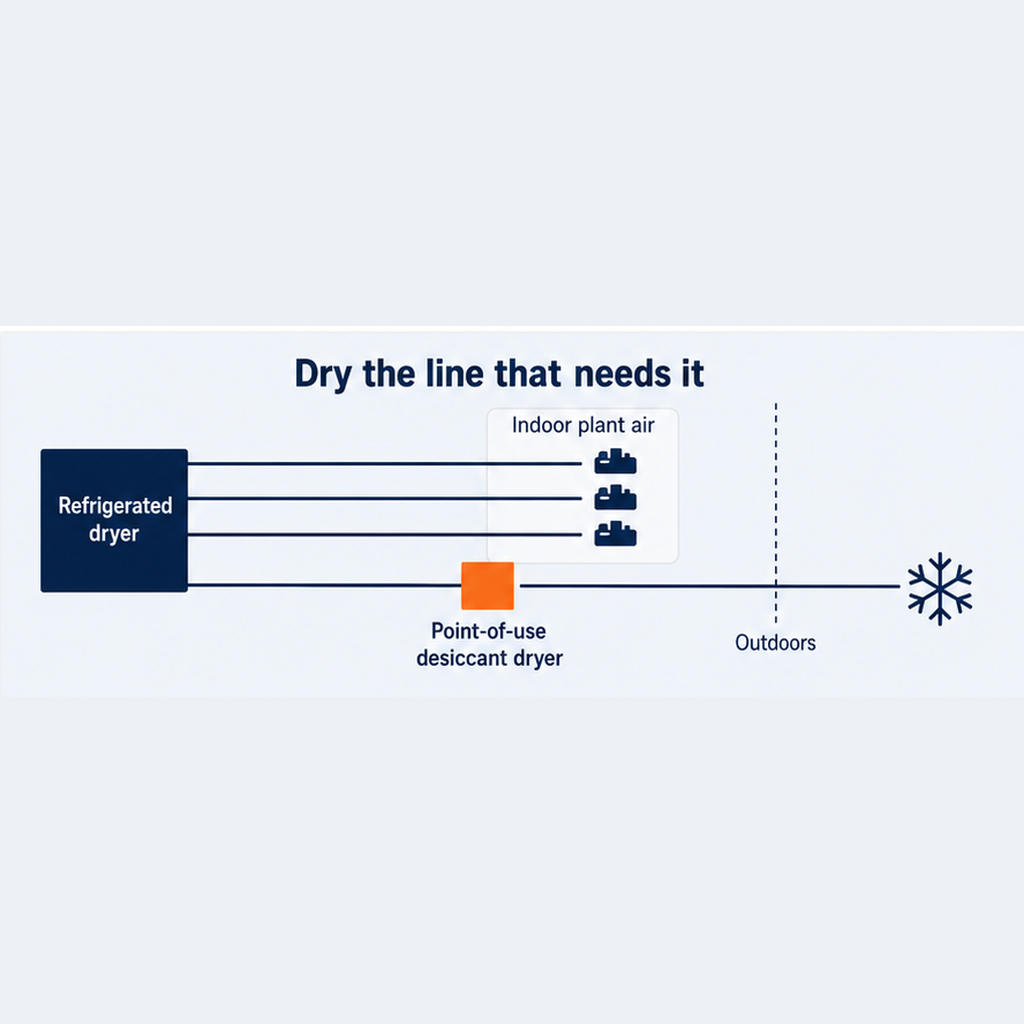

One more option worth knowing about: you do not have to dry the whole plant to -40°F because one line needs it. A small point-of-use desiccant dryer on the critical line, with a refrigerated dryer handling everything else, often makes more sense than a plant-wide desiccant purchase.
Cost and Maintenance: What to Expect
Plan on a desiccant dryer costing more up front and several times more to run.
The refrigerated side of that comparison is simple. A refrigerated dryer runs a small refrigeration circuit at a steady draw of roughly 0.8 kW per 100 cfm. That draw is steady, so the operating cost is easy to plan around.
A heatless desiccant dryer’s big cost is its purge air, the 15 to 20 percent of flow it uses to regenerate. Compressed air system auditors put a heatless desiccant dryer’s operating cost at roughly four to six times that of a refrigerated dryer, and the purge air is the main reason.
The waste gets worse when your plant slows down. A heatless dryer without dew point demand controls purges the same fixed amount of air no matter how much air your plant is using. Cut your air use in half and the purge stays the same size, so its share doubles: at half load, the purge equals 30 to 40 percent of the air your plant is actually using. If you need a heatless desiccant dryer, ask about dew point demand control. Nothing else you can add to that dryer will do more to cut its operating cost.
Federal energy guidance matches what we tell customers: drying compressed air beyond the dew point you need adds cost with no benefit.
Maintenance follows the same pattern. A refrigerated dryer’s sealed refrigeration circuit is mostly hands-off between services. Keep its filters clean and its drain working, and it will run for years. A desiccant dryer needs filter changes, valve and muffler service, and fresh desiccant on a schedule. Heatless units typically need new beads every three to five years. Heated units need them every two to three years, because heat ages the beads faster. Replacing the desiccant is a planned service visit, not a rebuild: the spent beads are emptied out of the towers and fresh ones go in, usually during scheduled downtime. Both types last longer with scheduled service, which is part of what our preventative maintenance memberships cover.
Signs Your Current Dryer Is the Wrong Type
If you already own a dryer and still find water downstream, or your lines freeze every winter while the dryer runs fine, the dryer may be the wrong type for the job rather than broken. A refrigerated dryer that is working perfectly will still put water into any line that gets colder than the 35 to 40°F dew point the dryer delivers. Our plant manager’s guide on how to prevent air dryer failure covers how to tell a failing dryer from a mismatched one.
Which Air Dryer Should You Choose?
Choose a refrigerated air dryer if:
- Your compressed air stays indoors in heated space
- You run general plant air, pneumatic tools, or typical manufacturing
- Nothing in your work requires a dew point below about 35°F
Choose a desiccant air dryer if:
- Any line runs outdoors, between buildings, or through unheated space
- You are in food, beverage, pharmaceutical, finishing, or another moisture-critical process
- Your spec calls for a -40°F dew point or a low ISO 8573-1 humidity class
If you are not sure which type fits your operation, we will help you figure it out before you buy anything. We are Detroit Compressor, serving metro Detroit and southeast Michigan from our Troy shop since 2019, and we sell, install, and service both refrigerated and desiccant dryers, including our own line of Hodge air dryers. Tell us where your lines run and what your air touches, and we will tell you the dew point you actually need. Give us a call or send us a message, and we will help you pick the right one.
